Description

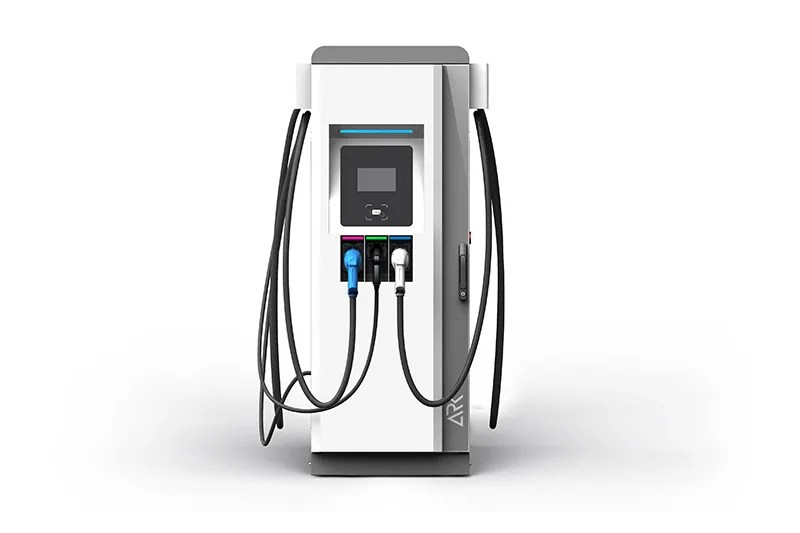

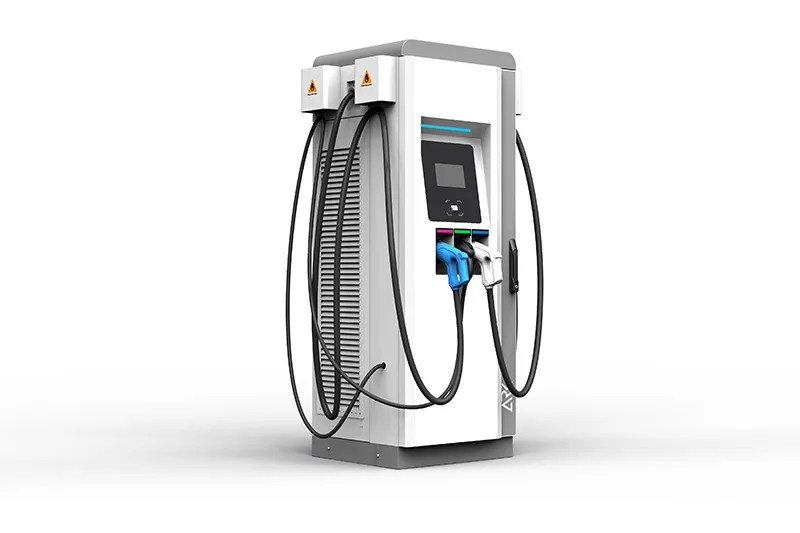

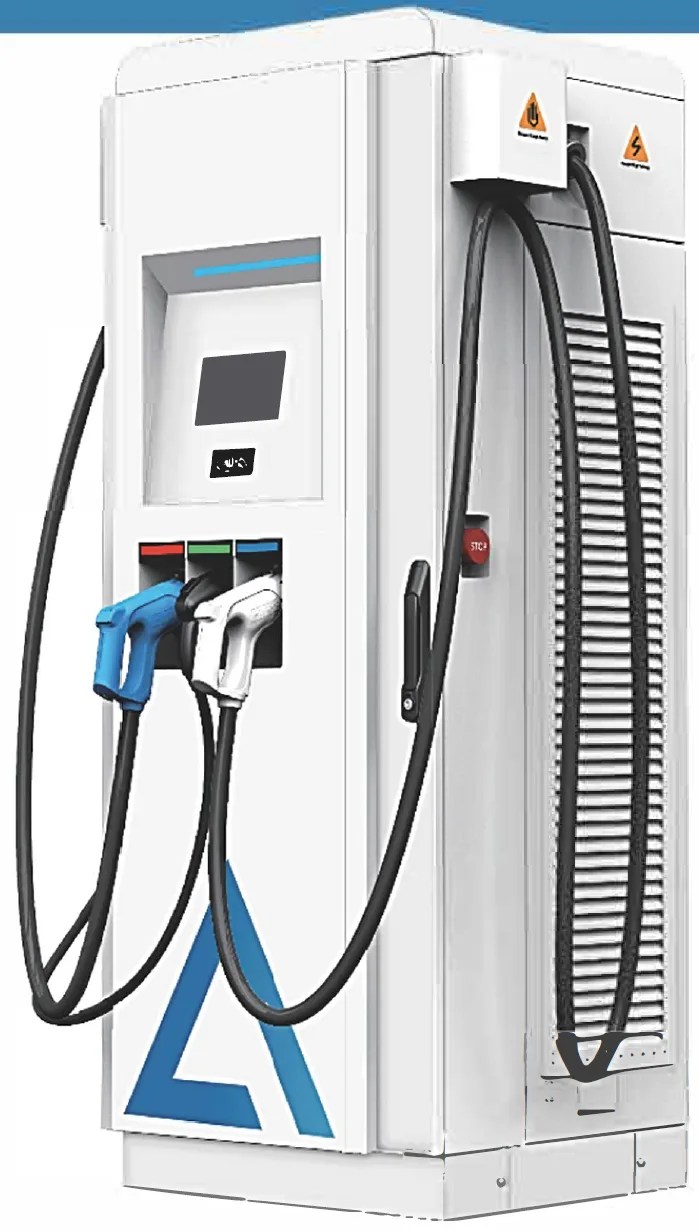

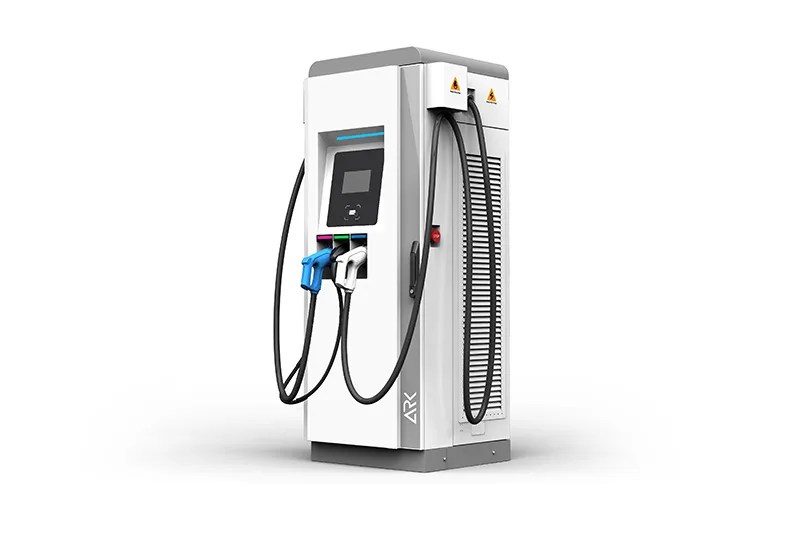

Elevate your EV infrastructure to new heights with the EF160 Series—a versatile 60-180kW DC fast charger featuring dual DC outlets (CHAdeMO and CCS Combo-2) and an optional 22kW Type-2 AC port, ideal for high-demand sites like highways, fleet depots, and urban service stations. Recently updated for enhanced performance in projects like South America’s national public transport initiatives, it supports simultaneous charging across three connectors, delivering up to 180kW total output (e.g., two CCS-2 at 90kW each) at 150-750V DC to cut downtime and boost throughput for buses, cars, and beyond. Its modular metal enclosure with semi-gloss coating ensures a sleek, resilient fit for outdoor use, complete with innovative balancer reels on each outlet for tangle-free cable management and prolonged durability.Smart and scalable at heart, the EF160 integrates seamlessly via OCPP 1.6 JSON protocol (upgradable) over Ethernet, LTE, or 3G/4G for global platform connectivity and remote upgrades. Users enjoy a customizable 7-inch multilingual touchscreen UI for effortless session control, secure RFID or app-based access with real-time push notifications, and illuminated LED beacons for instant status checks—optimized algorithms further protect batteries while thermal management keeps operations cool under pressure. Robust safeguards include IP54/IP55 dust/water resistance, IK10 impact-proofing, and protections against over/under voltage, overloads, leakage, grounding faults, and surges, all meeting CE and IEC 61851 standards for reliable, compliant deployment.Tailor it to your needs with modular power scaling—add modules for future-proof upgrades without full replacements—and floor-standing installation that handles -20°C to +70°C, 5-95% non-condensing humidity, and altitudes under 2000m, powered by 400Vac 3-phase input at over 94% efficiency. From EV Morocco’s innovative R&D, it arrives with a 2-year warranty including free parts replacement for defects and expert guidance, plus a 30-day satisfaction guarantee to support your sustainable ambitions.Essential Specs Overview:
|
Specification
|
Value/Details
|
|---|---|
|
Power Output
|
60-180kW DC (150-750V, up to 325A); Optional 22kW AC (32A, 400V)
|
|
Input
|
400Vac ±10%, 3-Phase + N + PE, 50Hz
|
|
Connectors
|
Dual: CHAdeMO (JEVS G105) & CCS Combo-2; Optional IEC 62196 Type-2 AC
|
|
Connectivity
|
OCPP 1.6 JSON (upgradable), Ethernet/LTE/3G/4G, RFID/App
|
|
Protection
|
IP54/IP55/IK10, Over/Under Voltage, Overload, Leakage, Grounding, Surge
|
|
Operating Range
|
-20°C to +70°C, 5-95% Humidity, <2000m
|
|
Efficiency
|
>94-95% at Rated Output
|
|
Certifications
|
CE, IEC 61851
|
Power up progress—feature the EF160 in your shop and drive multi-vehicle efficiency into the future.
- Scalable Super Power: Mode 4 DC from 60-180kW/325A for dual CHAdeMO/CCS simultaneous charging; optional 22kW AC for all-in-one versatility in busy depots.
- Network Nexus: OCPP 1.6 JSON via Ethernet/LTE/4G; remote app integration with alerts for smooth, upgradable global ops.
- Intuitive Core: 7″ customizable multilingual touchscreen, RFID/app auth, LED status—balancer reels ensure hassle-free cable flow.
- Shielded Excellence: IP54/IP55/IK10 build; advanced thermal/battery algorithms with full voltage/leakage/surge defenses.
- Global Grit: Modular floor-mount; dominates -20°C to +70°C, humid/high-altitude with 94%+ efficiency and clean energy focus.
- Assured Evolution: CE/IEC 61851 certified, 2-year warranty with EV Morocco support—customizable for branding and peak performance.
Ignite your lineup with the EF160—where modularity meets momentum. Stock now and supercharge sustainability!
