Description

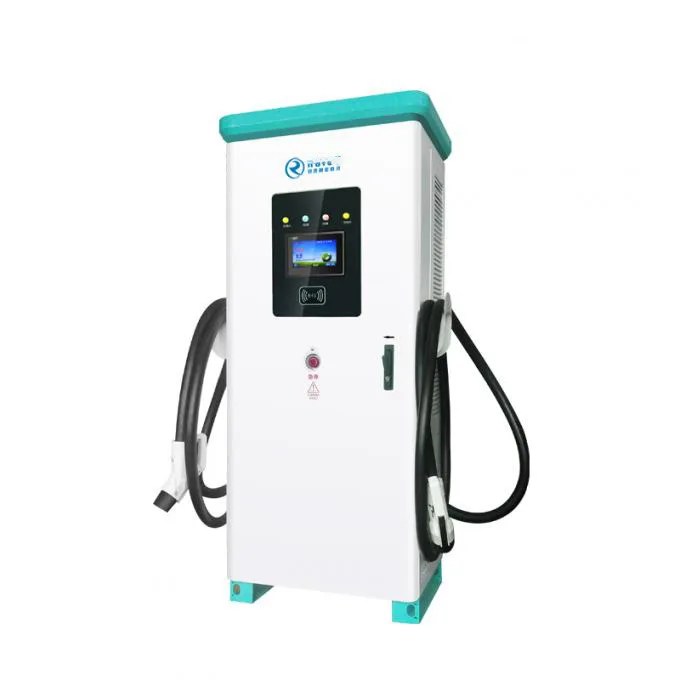

Unleash the ultimate charging experience with our 120/160/180kW AD Big Screen DC Fast Charger—a dynamic, floor-standing titan built for high-traffic hubs and future-ready fleets. Seamlessly scale from 120kW for rapid 500-600km/hour range boosts on compact EVs to 180kW ultra-fast surges (up to 800km/hour), powering everything from city commuters to heavy-duty SUVs in minutes. Its vibrant 8-10″ TFT touchscreen doubles as a revenue engine, streaming custom ads while users tap RFID, scan QR, or launch via app for instant access. Dual CCS2/CHAdeMO ports with OCPP 2.0 cloud sync ensure universal compatibility and smart grid harmony, while IP55 armor shrugs off dust, rain, and extreme climates. Packed with intelligent load balancing, Plug&Charge readiness, and robust safety (Type A+B RCD, overcurrent protection), it’s a modular marvel—install once, upgrade forever. Redefine fast, fuel the future!Key Specs at a Glance:
|
Feature
|
120kW Mode
|
160kW Mode
|
180kW Mode
|
|---|---|---|---|
|
Power Output
|
120kW (Adjustable)
|
160kW (Adjustable)
|
180kW (Adjustable)
|
|
Input Voltage
|
3-Phase 400V AC ±15%
|
3-Phase 400V AC ±15%
|
3-Phase 400V AC ±15%
|
|
Output Voltage/Current
|
150-1000V DC / 200A
|
150-1000V DC / 250A
|
150-1000V DC / 270A
|
|
Charging Speed
|
~500-600km/h range
|
~650-700km/h range
|
~750-800km/h range
|
|
Connectors
|
Dual CCS2 + CHAdeMO (5m cables)
|
Dual CCS2 + CHAdeMO (5m cables)
|
Dual CCS2 + CHAdeMO (5m cables)
|
|
Display
|
8-10″ TFT AD Touchscreen LCD
|
8-10″ TFT AD Touchscreen LCD
|
8-10″ TFT AD Touchscreen LCD
|
|
Dimensions
|
1800x1000x700mm
|
1800x1000x700
|
Pro Tip: Prime for Marrakech rest stops or Tangier ports—monetize the big screen with local ads while slashing charge times by 70% vs. AC. Tap 90% tax credits for your 2030 World Cup-ready setup!
Propel Morocco’s electric odyssey forward with EV Morocco’s elite 120/160/180kW AD Big Screen DC Fast Charger—a robust, floor-standing sentinel for high-traffic venues like Agadir service areas or Essaouira eco-resorts. As the Kingdom surges toward 2,500 charging points by 2026 under the “Green Transport Plan 2025” and preps for 100% EV logistics in the 2030 World Cup, this charger scales to your ambition: 120kW for efficient 500-600km/hour infusions on urban runabouts like the Citroën ë-C4, ramp to 160kW for balanced fleet fueling, or unleash 180kW for blistering 750-800km/hour top-offs—ensuring Marrakech merchants and Rabat executives never skip a beat.Elevated features for the Moroccan edge:
- Monetized Brilliance: Expansive 8-10″ TFT AD Big Screen for touch navigation, real-time stats, and dynamic advertising—generate passive income while users authenticate via RFID, NFC, or app. Supports Ethernet/4G/Wi-Fi for remote tweaks.
- Fortified Resilience: Powder-coated steel with IK10 anti-vandalism and IP55 sealing—masters -30°C High Atlas nights to +55°C Saharan days, 95% humidity, and sand gusts, fully IMANOR-compliant for seamless national integration.
- Next-Gen Intelligence: OCPP 2.0.1 with ISO15118 Plug&Charge (upgradable), dynamic power allocation for dual simultaneous charges, and solar/grid balancing. App alerts for maintenance, billing integration, and voice control via Alexa.
- Versatile Connectivity: Dual-gun setup with CCS2 (Morocco’s go-to) + CHAdeMO for globals; armored 5m cables, optional GB/T for imports. Floor-mount with cable management for easy 3-phase hookups.
With a 5-year warranty and EV Morocco’s coast-to-mountain support, this is beyond charging—it’s a profit center for sustainable growth. Eco-sourced modules align with COP26 goals, and government perks like customs waivers make it a no-brainer investment. One station, infinite journeys!Why EV Morocco? We’re the Kingdom’s EV vanguard—delivering modular, ad-enabled chargers that evolve with your grid, bridging gaps in high-power infrastructure.Demand surging—claim your ultra-fast edge and light up Morocco’s roads today!
