Description

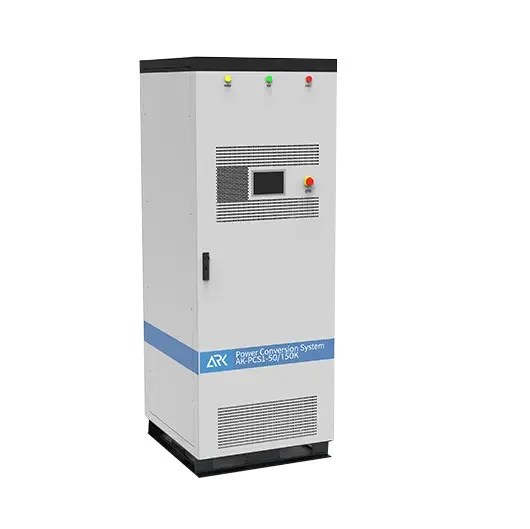

Unlock the potential of hybrid energy solutions with the AK-PCS1-50/150K Series—a cutting-edge Modular Power Conversion System (PCS) designed for seamless integration in commercial micro-grids, industrial buildings, and EV charging hubs. This all-in-one powerhouse, scaling from 50kW to 150kW, combines AC power distribution, a built-in transformer, bi-directional DC/AC and DC/DC modules, and an intuitive monitoring system to optimize photovoltaic self-generation, energy storage, and grid interactivity. Whether powering off-grid EV fleets or stabilizing loads in high-demand sites, it delivers up to 165kW max power with a wide 600-900V battery voltage range, ensuring efficient, flexible energy flow that reduces costs and boosts sustainability.What makes the AK-PCS1 a game-changer? Its modular architecture allows effortless power scaling—mix and match modules for 50kW, 100kW, or 150kW configs—while dual-stage topology handles broad DC inputs for reliable performance in on-grid or off-grid modes. Communicate flawlessly via RS485, CAN, or Ethernet for remote oversight, and monitor via a crisp 10.1-inch touchscreen with customizable UI. Safety is layered deep: From over-temperature and voltage/frequency protections to anti-islanding and ground fault detection, it safeguards your setup against overloads and faults. Add optional PV interfaces for hybrid solar charging, making it ideal for EV stations that blend storage with fast replenishment.Compact yet robust, it installs vertically with forced air cooling, thriving in -20°C to +50°C environments (derating above 45°C) and up to 95% humidity, all within an IP20 enclosure (IP54 optional for outdoors). Certified for global standards and backed by EV Morocco’s innovative engineering, this PCS includes overload handling up to 120% for 1 minute and ≥97% peak efficiency to maximize your ROI.Essential Specs Overview:
|
Specification
|
Value/Details (50K / 100K / 150K)
|
|---|---|
|

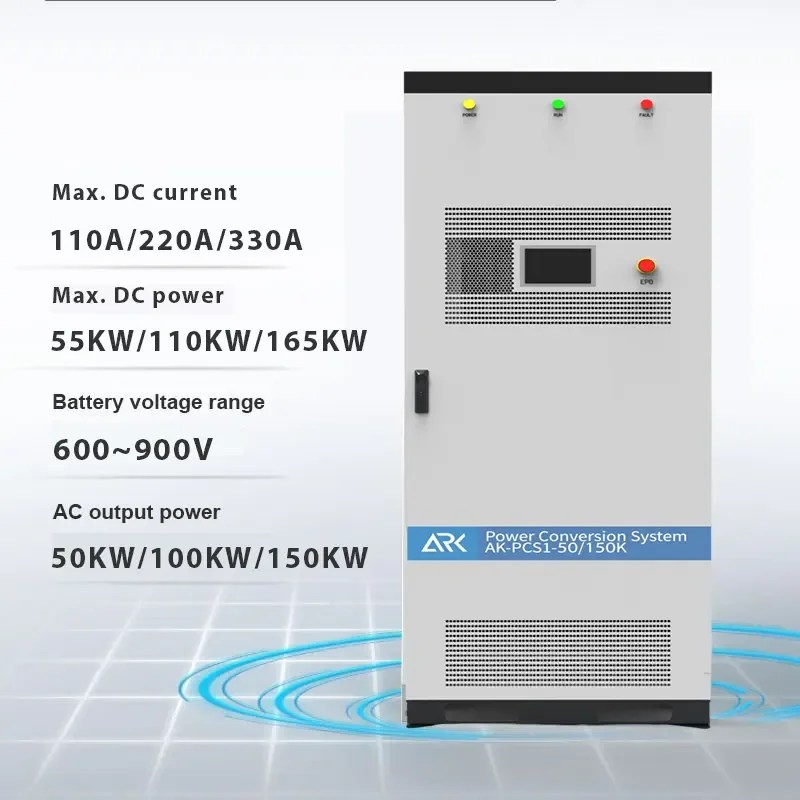

Nominal AC Output Power
|
50kW / 100kW / 150kW
|
|
Max. AC/DC Power
|
55kW / 110kW / 165kW
|
|
Max. DC Current
|
110A / 220A / 330A
|
|
Battery Voltage Range
|
600-900V (Utility/Stand-alone)
|
|
AC Voltage (Grid)
|
400V ±15% (3-Phase + PE)
|
|
Efficiency
|
≥97% Peak
|
|
Connectivity
|
RS485, CAN, Ethernet; 10.1″ Touch Screen
|
|
Protections
|
OTP, OVP/UVP, OFP/UFP, OLP, GFDI, Anti-islanding
|
|
Operating Range
|
-20°C to +50°C, 5-95% Humidity, <3000m Altitude
|
|
Dimensions (H x W x D)
|
2100 x 800 x 1000 mm
|
|
Weight
|
700kg / 1000kg / 1100kg
|
|
Certifications
|
Compliant for Grid/Micro-Grid Use
|
Supercharge your sustainable setup—integrate the AK-PCS1 into your shop and bridge storage with EV charging like never before.

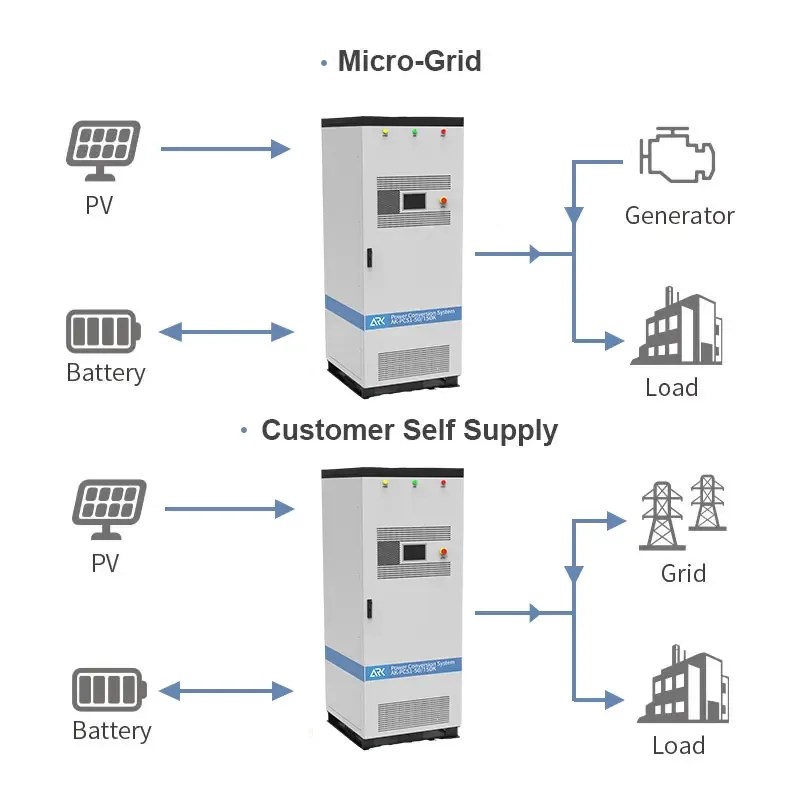

- Scalable Modular Might: 50-150kW configs with bi-directional AC/DC & DC/DC for flexible hybrid solar-storage in EV hubs and micro-grids.

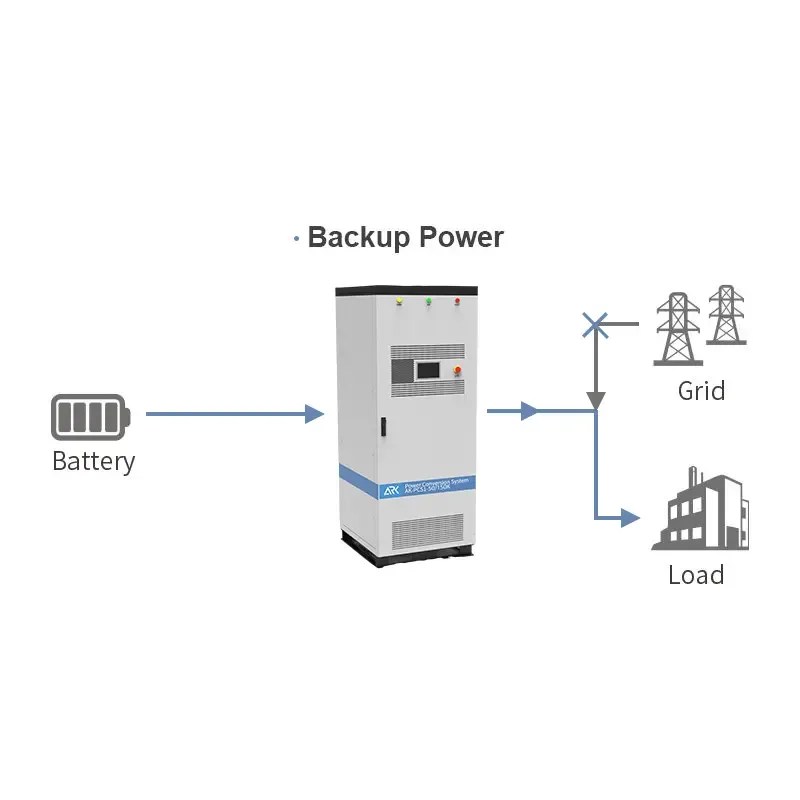

- Wide-Range Reliability: 600-900V battery input, 400V AC output—supports self-generation and seamless on/off-grid switching.
- Smart Integration Hub: RS485/CAN/Ethernet comms, 10.1″ touchscreen UI—add PV for all-in-one energy optimization.
- Fortified Safeguards: Multi-protections including OVP, GFDI, and 120% overload; IP20/IP54 enclosure for harsh ops.
- Eco-Adaptive Design: Forced air cooling, -20°C to +50°C range, ≥97% efficiency—compact vertical mount for space-savvy installs.
- Proven Performance: Built-in transformer for direct grid tie; EV Morocco-backed for durable, future-ready energy flow.
Elevate your offerings with the AK-PCS1—where modularity fuels the green grid. Stock it and power tomorrow’s charge!
